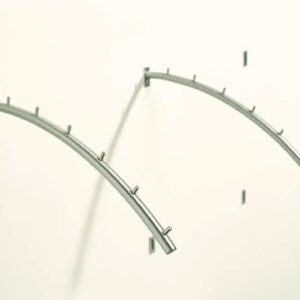

Curve arm with 8 pins

ASSEMBLY NOTES:

IP 111 500 00 and IP 111 503 00 carrier sockets are
suitable for installation into timber, board, glass, acrylic or
laminated panels 10-28mm in thickness.

1.  Place the i-puc carrier socket from the front through
   the machined panel slot.
   (NB: Panel slot dimensions required for IP 111 500 00 and IP 111 503 00 carrier sockets as detailed left)
2. Screw the lock nut from the rear to the i-puc carrier socket body. Tighten the lock nut flush to the back of the panel.
3. Secure the lock nut with 2 screws at the rear of the panel.

I-PUC™ Merchandising & Display system

Discreet in appearance and amazingly versatile in application, this cleverly engineered display program provides a distinctive innovation in “puck” based merchandising systems.

Unobtrusive yet versatile in application

Engineered for strength and versatility, i-puc’s discreet, vertical carrier sockets fit directly into timber, board, glass, acrylic or laminated materials and sit clean to the panel surface.
Suitable for use in panels from 10-28mm in thickness, i-puc carrier sockets can be placed at various heights or spacings along the surface to accommodate the required display application.

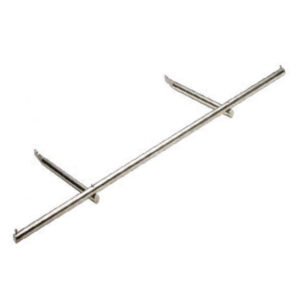

Fully interchangeable hardware

From shelving display application right through to front and side hang merchandising, i-puc offers a wide selection of quality and versatile, support hardware. Merchandise support accessories slot securely into the i-puc carrier socket and, can be easily added, removed or reconfigured as needed.

Unlimited design possibilities

Create your own design concept with i-puc.
Beginning with the carrier socket, you specify the quantity, placement and type of accessories required to suit display application.

Panels can be manufactured in a range of colours, sizes and finishes and, if required, adopt vertical concealed stripping for added flexibility.

Technical Data

• Maximum capacity load for each bracket should not exceed 15kg.
• i-puc carrier sockets are diecast in zinc, nickel-plated and anodised in a satin finish with PVC locknuts.
• Merchandise support accessories are finished in satin chrome.
• 30 x 10mm panel slots required to fit i-puc carrier sockets. See milling instructions provided for additional detail.
