I-PUC™ carrier sockets fit directly into the panel and sit clean to the front surface.
Suitable for panel thicknesses of 10-28mm. Body 44mm long, flange 2mm thick.
IP 111 500 00 and IP 111 503 00 carrier sockets are
suitable for installation into timber, board, glass, acrylic or
laminated panels 10-28mm in thickness.
Discreet in appearance and amazingly versatile in application, this cleverly engineered display program provides a distinctive innovation in “puck” based merchandising systems.
Engineered for strength and versatility, i-puc’s discreet, vertical carrier sockets fit directly into timber, board, glass, acrylic or laminated materials and sit clean to the panel surface.
Suitable for use in panels from 10-28mm in thickness, i-puc carrier sockets can be placed at various heights or spacings along the surface to accommodate the required display application.

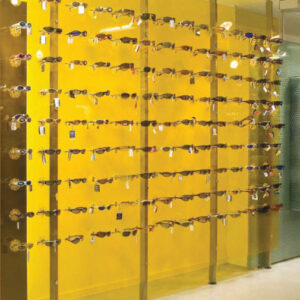

From shelving display application right through to front and side hang merchandising, i-puc offers a wide selection of quality and versatile, support hardware. Merchandise support accessories slot securely into the i-puc carrier socket and, can be easily added, removed or reconfigured as needed.
Create your own design concept with i-puc.
Beginning with the carrier socket, you specify the quantity, placement and type of accessories required to suit display application.
Panels can be manufactured in a range of colours, sizes and finishes and, if required, adopt vertical concealed stripping for added flexibility.
• Maximum capacity load for each bracket should not exceed 15kg.
• i-puc carrier sockets are diecast in zinc, nickel-plated and anodised in a satin finish with PVC locknuts.
• Merchandise support accessories are finished in satin chrome.

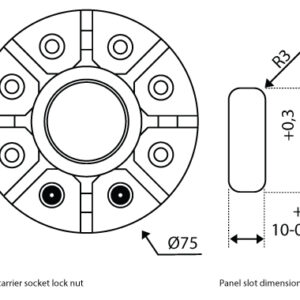

• 30 x 10mm panel slots required to fit i-puc carrier sockets. See milling instructions provided for additional detail.
You can download the catalogue here
